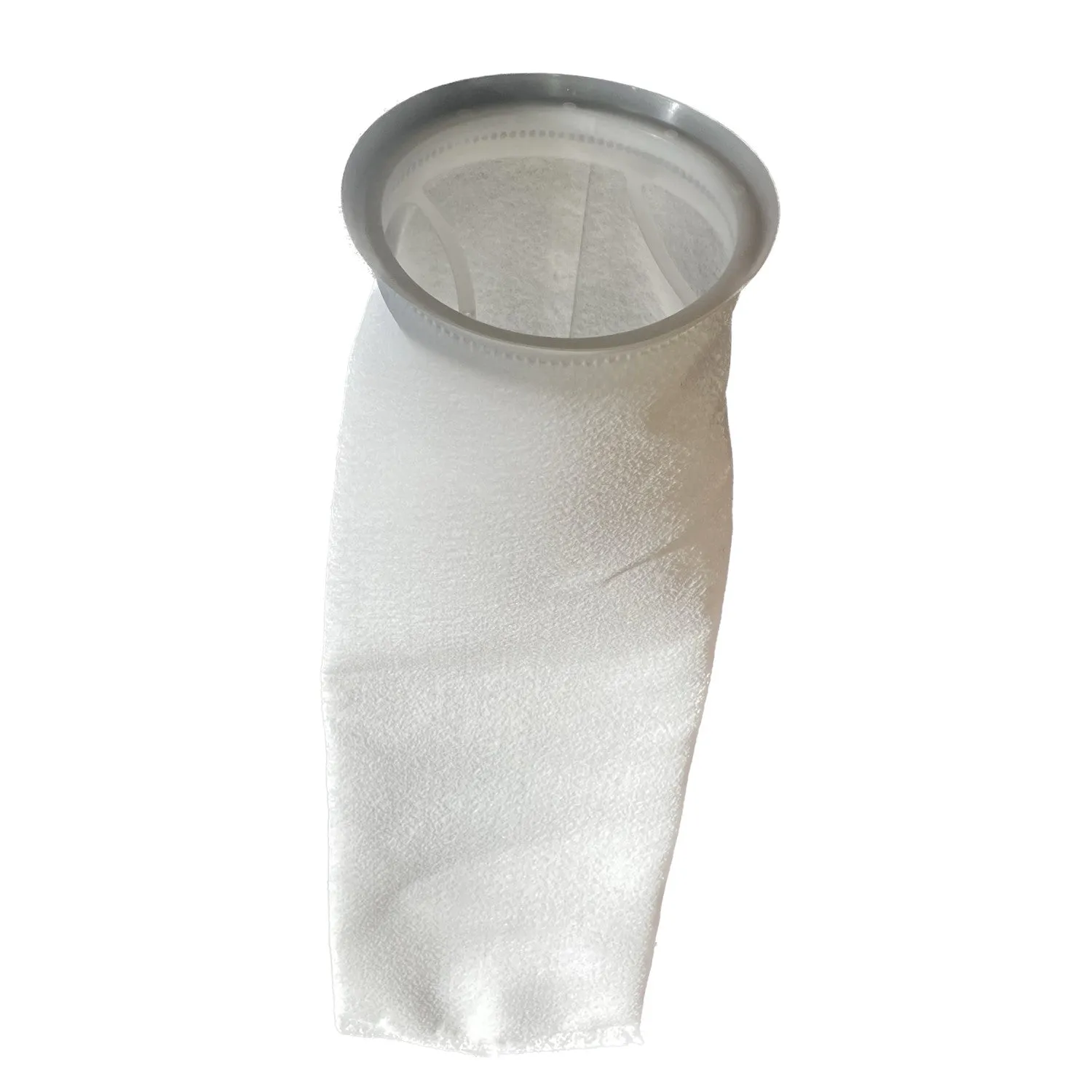

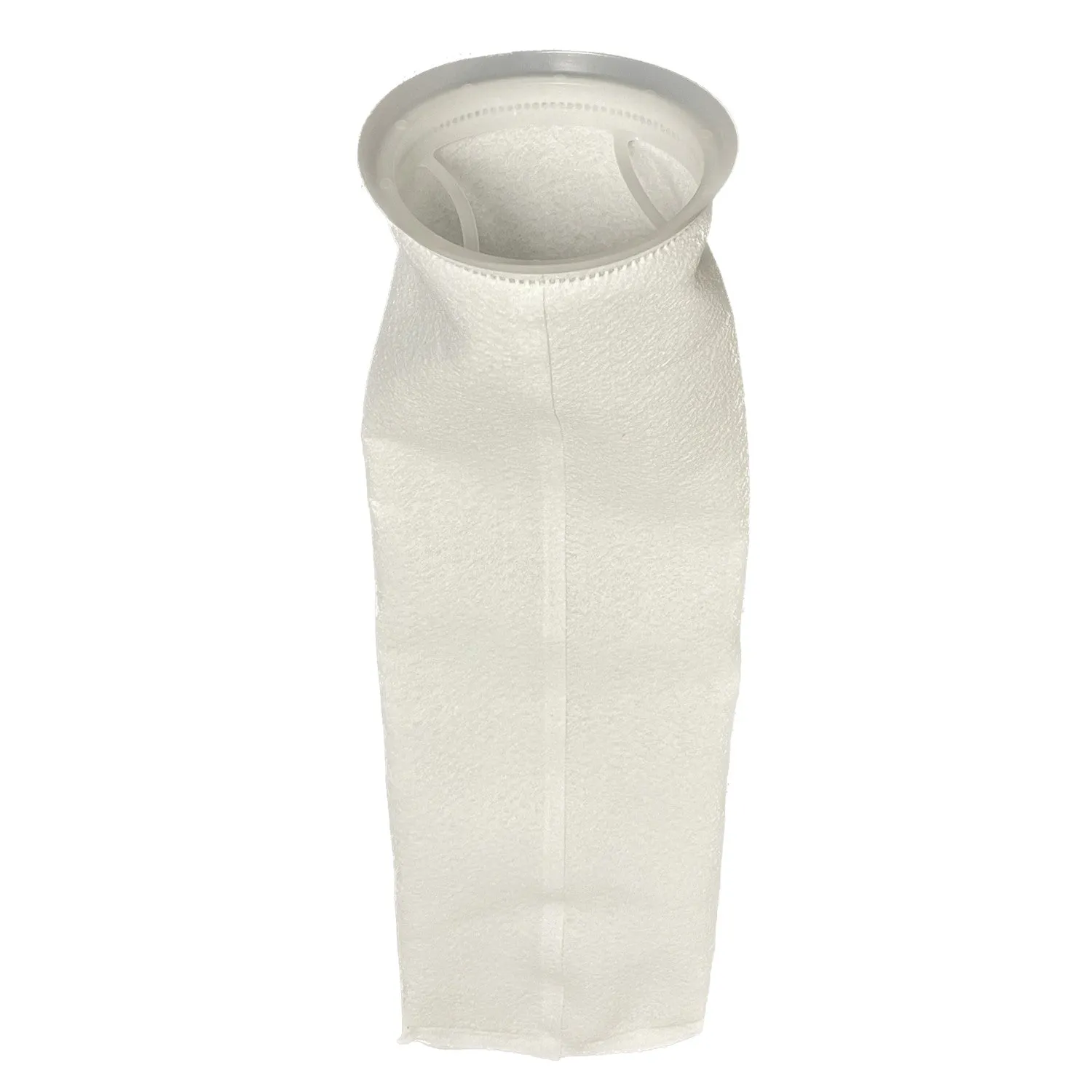

POLYESTER FELT #2 SIZE LIQUID FILTER BAGS FOR FILTER HOUSINGS
PRMFiltration liquid filter bags made of polyester felt to offer you quality and efficiency in each bag. Polyester Felt bag materials offer high dirt holding capacity at a low cost.

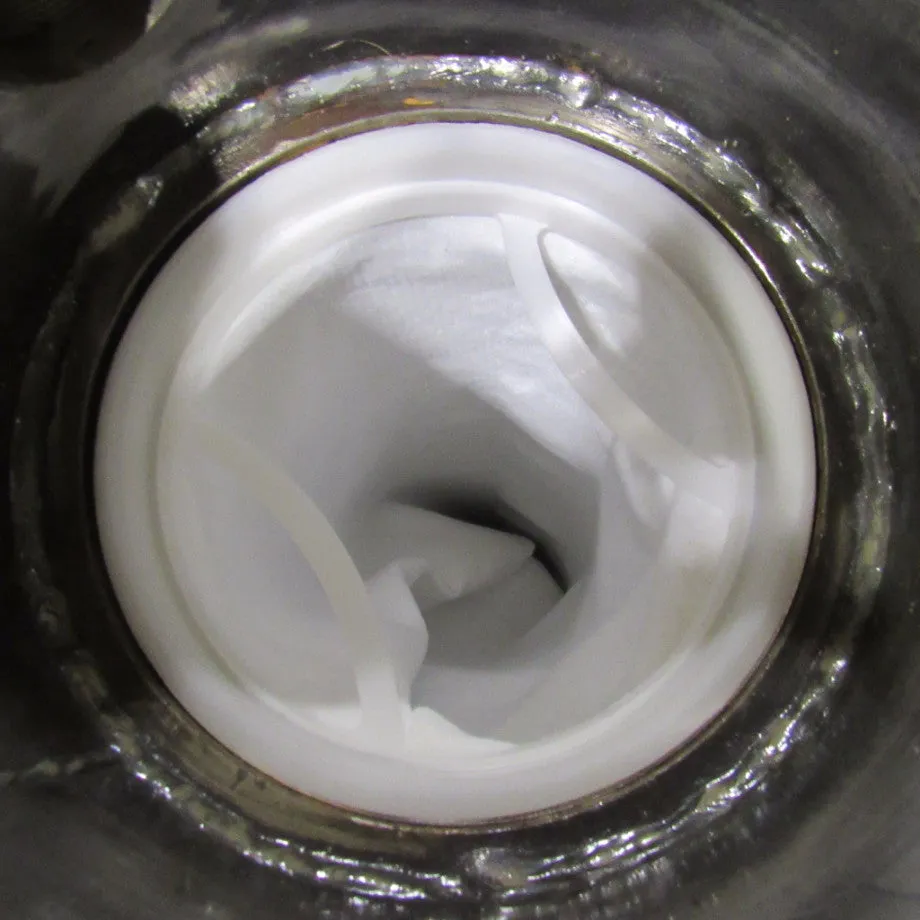

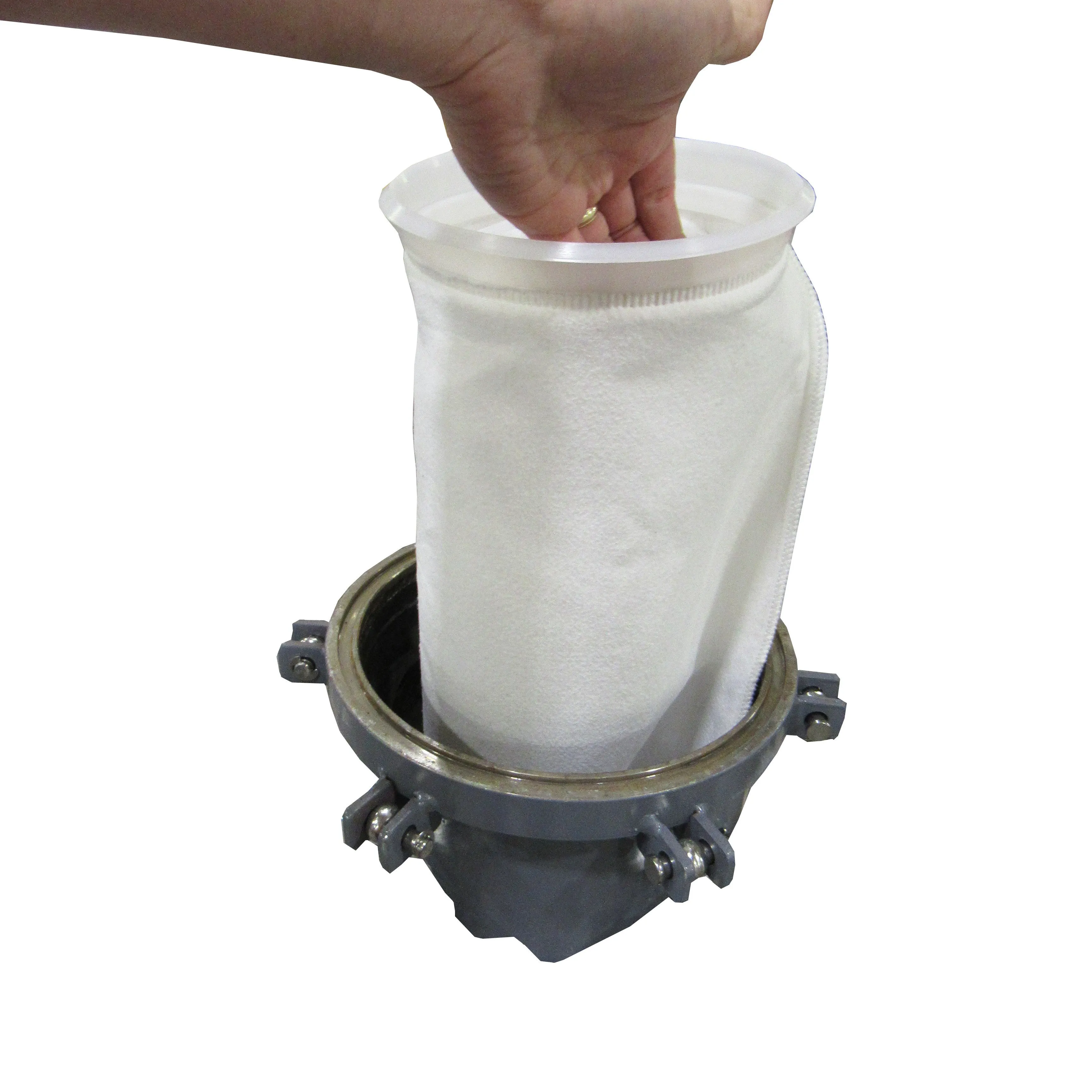

Filter bags are designed to filter liquid media by trapping contaminants in the bag material. The bags are then replaced when they become full. Filter bags work by fitting inside of a filter bag housing. The liquid is then piped into the housing and through the bags. The filtered media comes through the bottom outlet and can continue through the piping. Filter bags come in a range of sizes, micron levels, and materials.
FEATURES:
- 7-1/16" diameter x 32" length
- # 2 Size Filter Bags

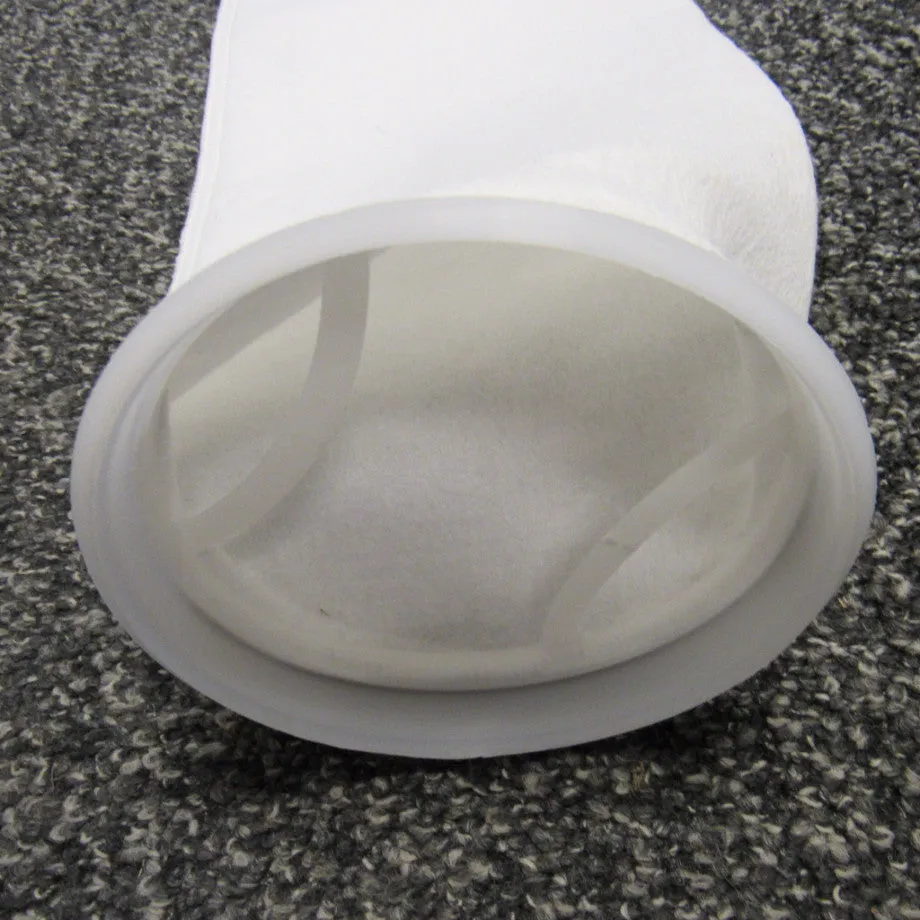

- Materials: Polyester Felt Bag, Polypropylene Ring
- 4.4 square feet of surface area
- Max. Temperature: 275 F
Industry Size:
The filtration industry uses standardized sizing so filter bags can work in any manufacturers housings of the same designated size. PRM has in inventory:
#1 size bags: 7-1/16" diameter x 16-1/2" length
#2 size bags: 7-1/16" diameter x 32" length
#4 size bags: 4-1/8" diameter x 14" length
Micron Rating:
Filter bags use micron ratings to denote the size of the holes in the bag. Depending on the bag material, PRM offers a range of micron sizes from 0.5 micron to over 700 micron. A micron is a unit of measurement to describe a millionth of a meter.
Welded vs. Sewn Seam
Most PRM bags have a welded seam to eliminate needle holes which may allow bypass. Some materials such as the nylon mesh and nomex material are sewn seam since the bag material does not allow for welding. Bags which are sewn use a 5 line system.
Available in Quantities of 10 or 25 Bags or cases of 50 bags.
